Off-Grid 40ft High Cube Shipping Container Cabin Plans – A7

Unleash the possibilities of sustainable living with our Off-Grid 40ft High Cube Shipping Container Cabin Plans. Ideal for those who seek to establish an inexpensive, functional, and eco-conscious refuge, these blueprints make your self-sufficient lifestyle dreams a reality.

INSTANT DOWNLOAD BLUEPRINTS

Created with functionality, comfort, and off-grid living in mind, these detailed plans feature a thoughtful layout that includes all the necessary amenities for a comfortable living space, while being mindful of energy consumption and environmental impact.

Embrace off-grid living and create your own sanctuary amidst nature with these comprehensive shipping container cabin plans.

Whether you’re setting up a temporary dwelling or investing in a permanent off-grid home, these plans guide your way to a lifestyle that’s independent, sustainable, and thoroughly rewarding.

What’s included?

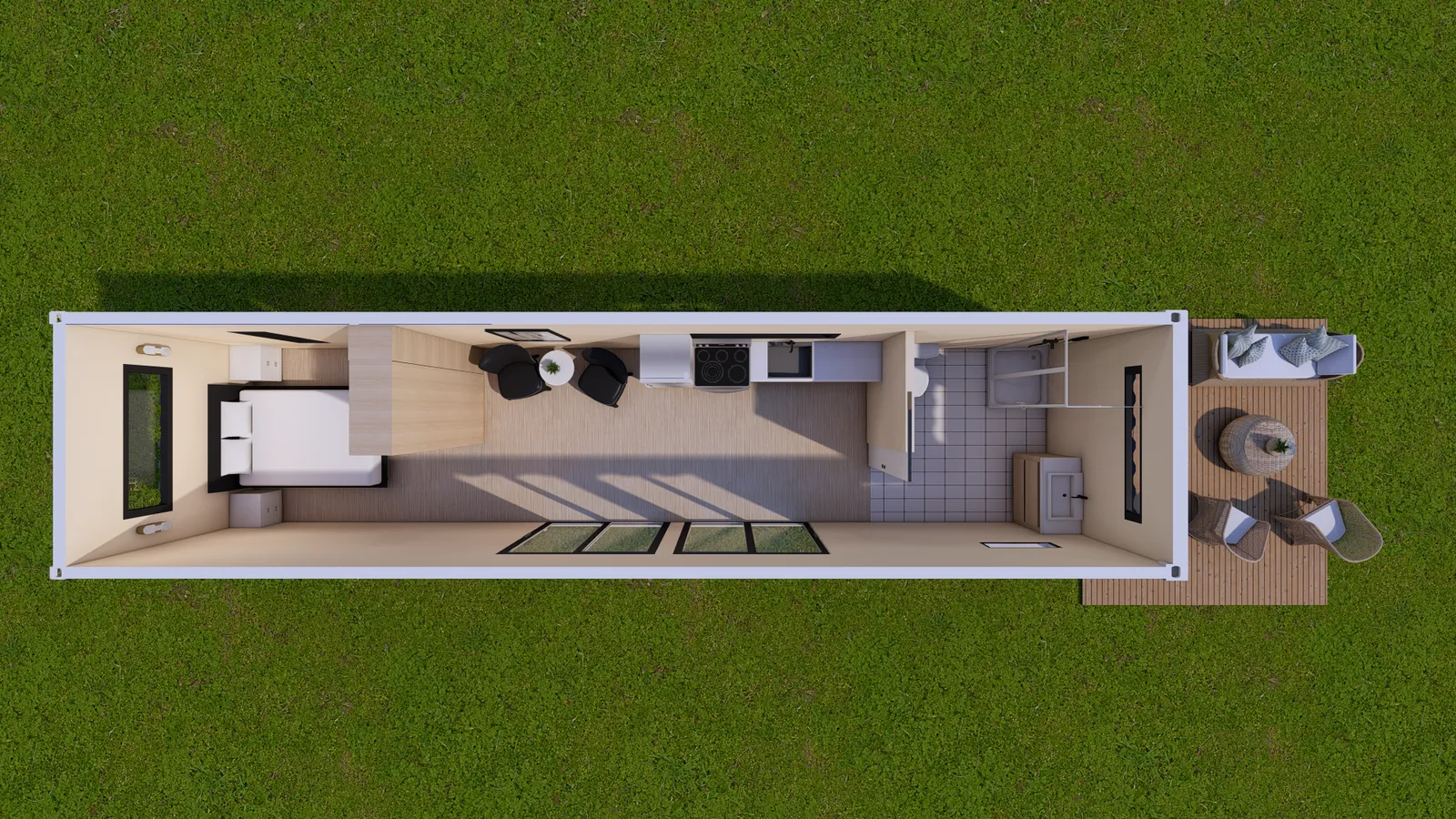

• Detailed floor plans showcasing room layouts and space planning.
• Technical drawings inclusive of structural components, electrical layouts, plumbing schematics, and HVAC plans.

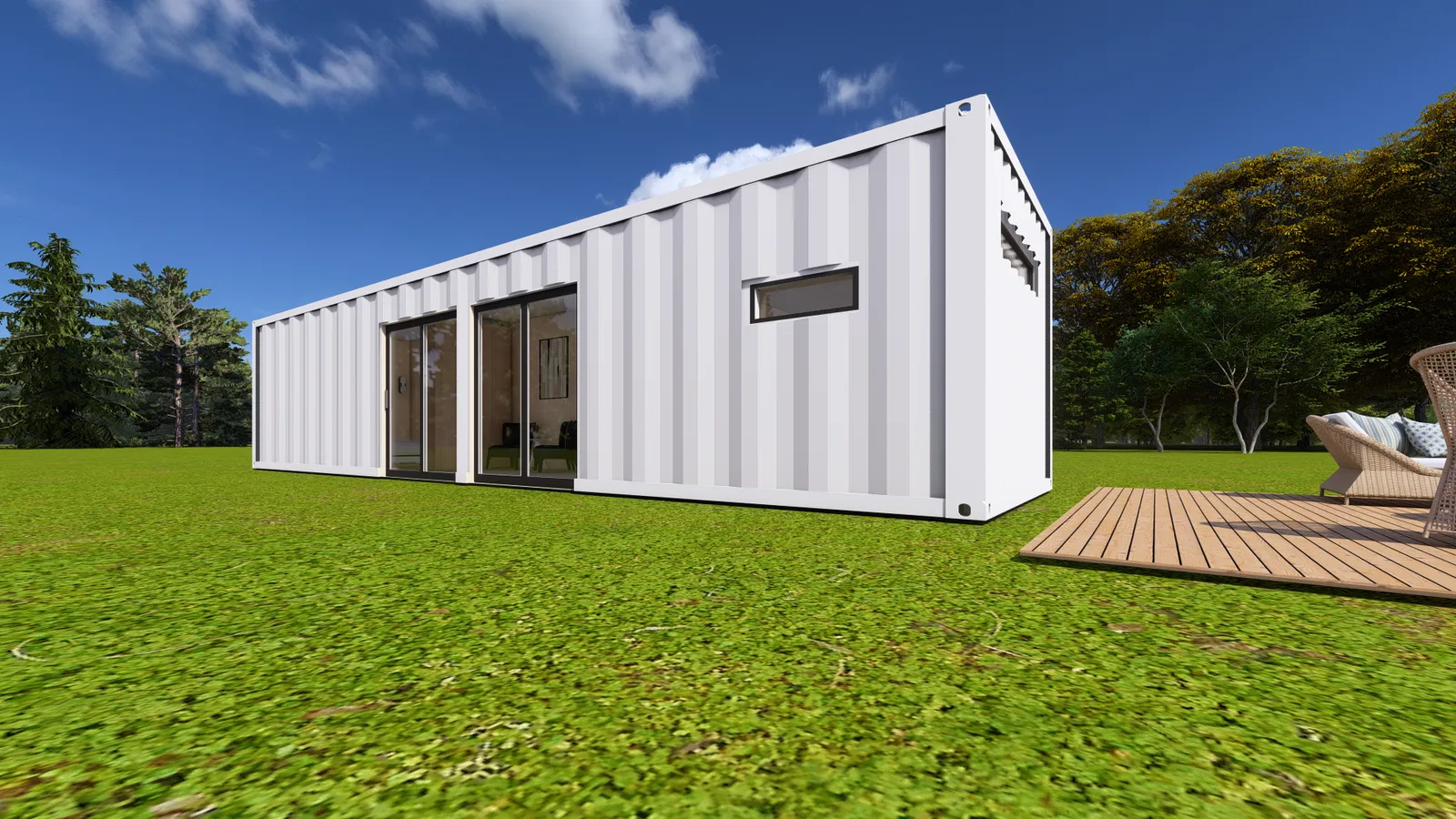

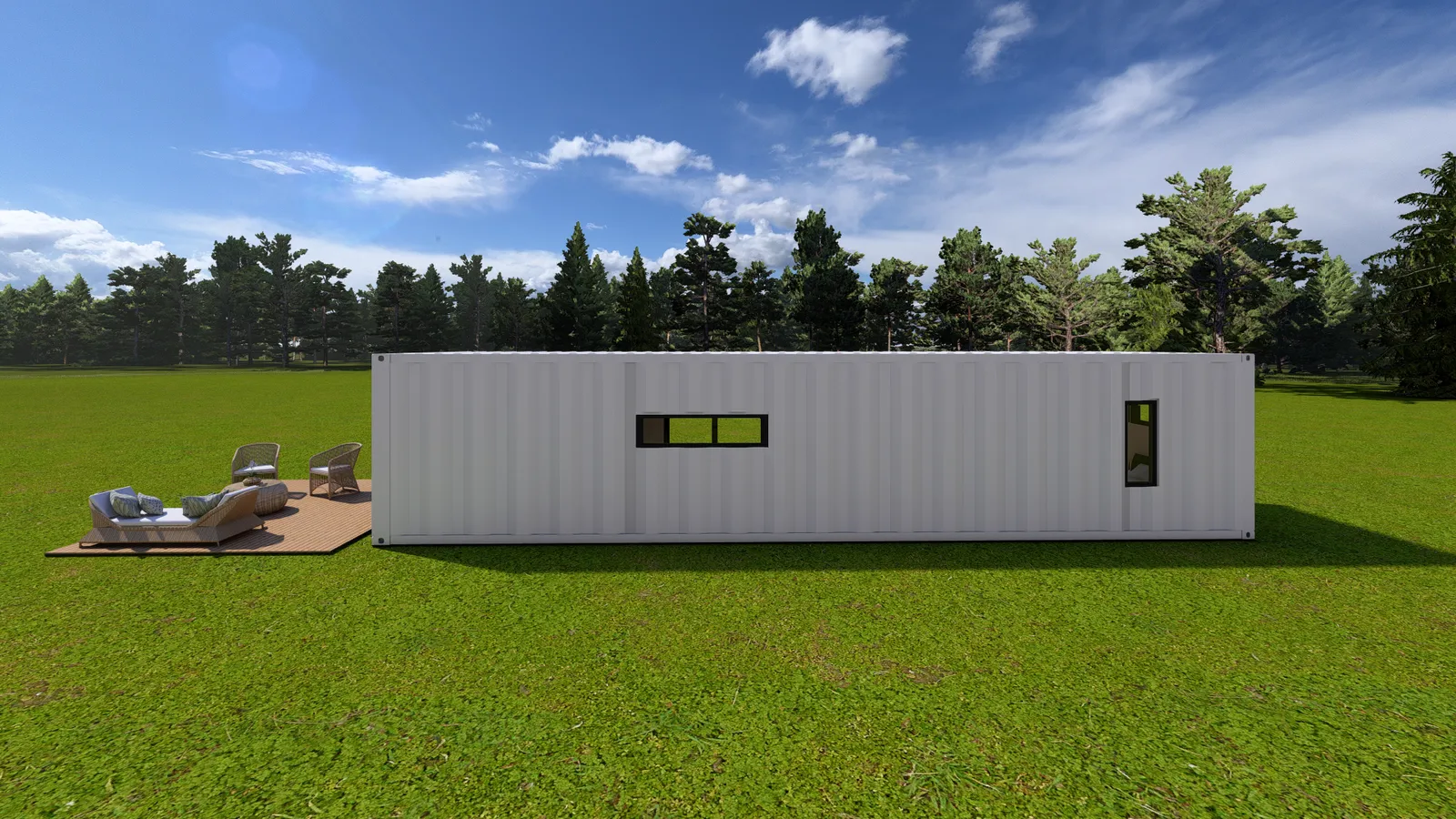

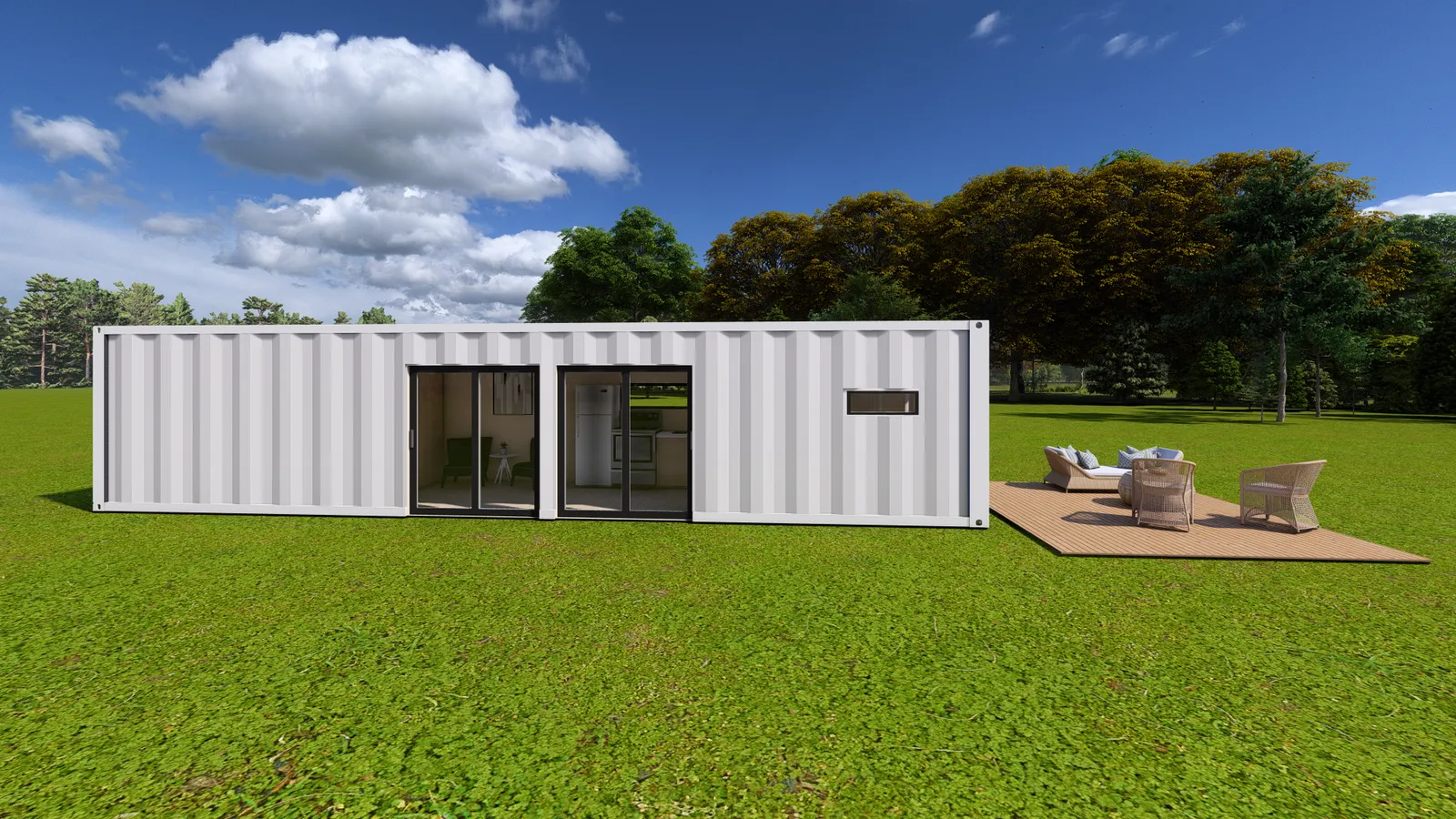

• Visual representations of finished interiors to help you visualize your future home.
• A comprehensive list of necessary materials, fixtures, and finishes for construction.

SHEET INDEX
COVER SHEET WITH PICTURES
COVER SHEET C.0
FLOOR PLAN AND ELEVATIONS A.1
GENERAL NOTES A.2
ELECTRICAL NOTES E.1
ELECTRICAL PLAN E.2
MECHANICAL NOTES M.1
MECHANICAL PLAN M.2
PLUMBING SPECS P.1
PLUMBING DETAILS & NOTES P.2
PLUMBING DETAILS P.3
FOUNDATION PLAN S.1
FOUNDATION GENERAL NOTES S.2
STRUCTURAL DETAILS S.3

Please note, these plans are digital and do not include the physical shipping container.

USA Professional Engineer Stamps and Certifications are available in most of the USA upon request.

Note: These digital plans are designed for personal use only and may not be reproduced or distributed without permission.

If you require any modifications, additions, or further assistance, don’t hesitate to contact us.

Learn more: oasisengineering.com/oasis-container-homes/

Questions? Contact us via oasisengineering.com/contact

NOTE: This product is digitally delivered and intended for use by a single household. Duplication, publication, sale, or distribution of any portion of these plans without prior written consent from the original designer and owner will be subject to penalties for copyright infringement. For large or custom orders, contact shop@oasisengineering.com.

Terms of Use: This product was designed for a specific building code and design environment as defined by specific structural engineering requirements. A qualified professional may need to review, modify, and certify the drawings as per local permitting and building code regulations. Review the plans with your local building inspector and acquire the necessary building permits before starting your project. Contact us if you require engineering or permitting guidance. Please verify all safety and regulatory requirements before construction with a qualified professional, contractor, engineer, or architect.
