Designing Container Homes for Hurricane and Flood Resilience: Meeting ASCE 24 Standards
As climate change continues to intensify the frequency and severity of hurricanes and flooding events, building resilient homes has become more crucial than ever. Container homes, known for their sustainability and affordability, can be engineered to withstand these natural disasters effectively. This article delves into the technical aspects of designing container homes above flood zones in compliance with ASCE 24 and hurricane codes, ensuring safety and structural integrity during extreme weather events.
Understanding the Risks
Hurricanes and Flooding Impact
Hurricanes bring a combination of high winds, heavy rainfall, storm surges, and flooding. The structural design of homes in hurricane-prone areas must address:
- Wind Loads: Uplift, shear, and lateral forces exerted by high-speed winds.
- Flood Loads: Hydrostatic and hydrodynamic pressures from rising water levels.
- Debris Impact: Flying debris that can penetrate or damage structures.
- Erosion and Scour: Soil loss around foundations due to fast-moving water.
Regulatory Framework
ASCE 24: Flood Resistant Design and Construction
ASCE 24 is a standard referenced by the International Building Code (IBC) that provides minimum requirements for flood-resistant design and construction of structures in flood hazard areas.
Hurricane Codes
Local building codes in hurricane-prone regions, such as the Florida Building Code (FBC), incorporate stringent requirements to ensure structures can withstand hurricane-force winds and associated impacts.
Designing Container Homes Above Flood Zones
1. Site Analysis and Planning
- Flood Zone Determination: Identify the Flood Hazard Area and Base Flood Elevation (BFE) using FEMA’s Flood Insurance Rate Maps (FIRMs).
- Design Flood Elevation (DFE): Establish the DFE, which is the BFE plus any required freeboard (additional height for safety).
2. Elevation of the Structure
- Elevated Foundations: Design the container home to be elevated above the DFE using one of the following methods:
- Pier Foundations: Concrete or steel piers supporting the structure above ground level.
- Piles: Deep foundations driven into the ground to support the elevated structure, suitable for areas with poor soil conditions.
- Stem Walls: Continuous walls that elevate the structure while enclosing the space below. This is a less typical option when it comes to container homes engineering.
3. Structural Design Considerations
Wind Load Resistance
- Anchoring Systems: Secure the containers to the foundation using engineered connections capable of resisting uplift and lateral forces.
- Structural Reinforcement:
- Welded Connections: Reinforce corners and joints to enhance rigidity.
- Cross-Bracing: Install steel bracing to distribute wind loads.
- Roof Design: Use sloped roofs to reduce uplift and ensure they are securely attached to the containers.
Flood Load Resistance
- Open Foundations: Design foundations that allow water to flow freely beneath the structure, reducing hydrodynamic pressure.
- Breakaway Walls:
- In Enclosed Areas Below DFE: Use walls designed to fail under flood conditions without compromising the structural integrity of the elevated home.
- Flood Openings:
- Engineered Vents: Install vents that allow automatic entry and exit of floodwaters to equalize hydrostatic pressure.
4. Material Selection
- Corrosion Resistance:
- Protective Coatings: Apply marine-grade paints and coatings to prevent steel corrosion due to moisture and saltwater exposure.
- Moisture-Resistant Materials:
- Insulation: Use closed-cell spray foam insulation that resists water absorption.
- Flooring and Wall Materials: Select materials that can withstand intermittent flooding if located below DFE.
5. Debris Impact Protection
- Window and Door Reinforcements:
- Impact-Resistant Glazing: Install windows and doors rated for high-impact resistance.
- Storm Shutters: Use deployable shutters to protect openings during a storm.
- Exterior Barriers:
- Screens or Grates: Install protective barriers over vulnerable areas to deflect debris.
6. Access and Egress
- Elevated Entryways:
- Stairs and Ramps: Design according to ADA requirements if necessary, ensuring safe access to the elevated home.
- Emergency Exits: Provide multiple exit points accessible during flooding.
7. Utility Systems
- Elevated Utilities:
- Electrical Systems: Install all electrical components above the DFE.
- HVAC Units: Place air conditioning and heating units on elevated platforms.
- Flood-Proofing Mechanical Systems:
- Water Heaters and Plumbing: Protect or elevate to prevent damage.
Compliance with ASCE 24 Standards
Key ASCE 24 Requirements for Residential Structures:
- Elevation: The lowest floor must be at or above the DFE.
- Foundations: Must be designed to resist flotation, collapse, and lateral movement.
- Materials: Use flood-damage-resistant materials below the DFE.
- Enclosures Below DFE: If permitted, must have flood openings and use breakaway walls.
Engineering Calculations
- Load Combinations: Apply load combinations from ASCE 7, including dead, live, wind, and flood loads.
- Hydrostatic and Hydrodynamic Loads:
- Calculate forces due to still water and moving water.
- Scour and Erosion Analysis:
- Design foundations to account for potential soil loss.
Case Study: Resilient Container Home Design in Hurricane-Prone Area
Project Overview:
- Location: Coastal region within a high-velocity flood zone (AE Zone).
- Design Solution:

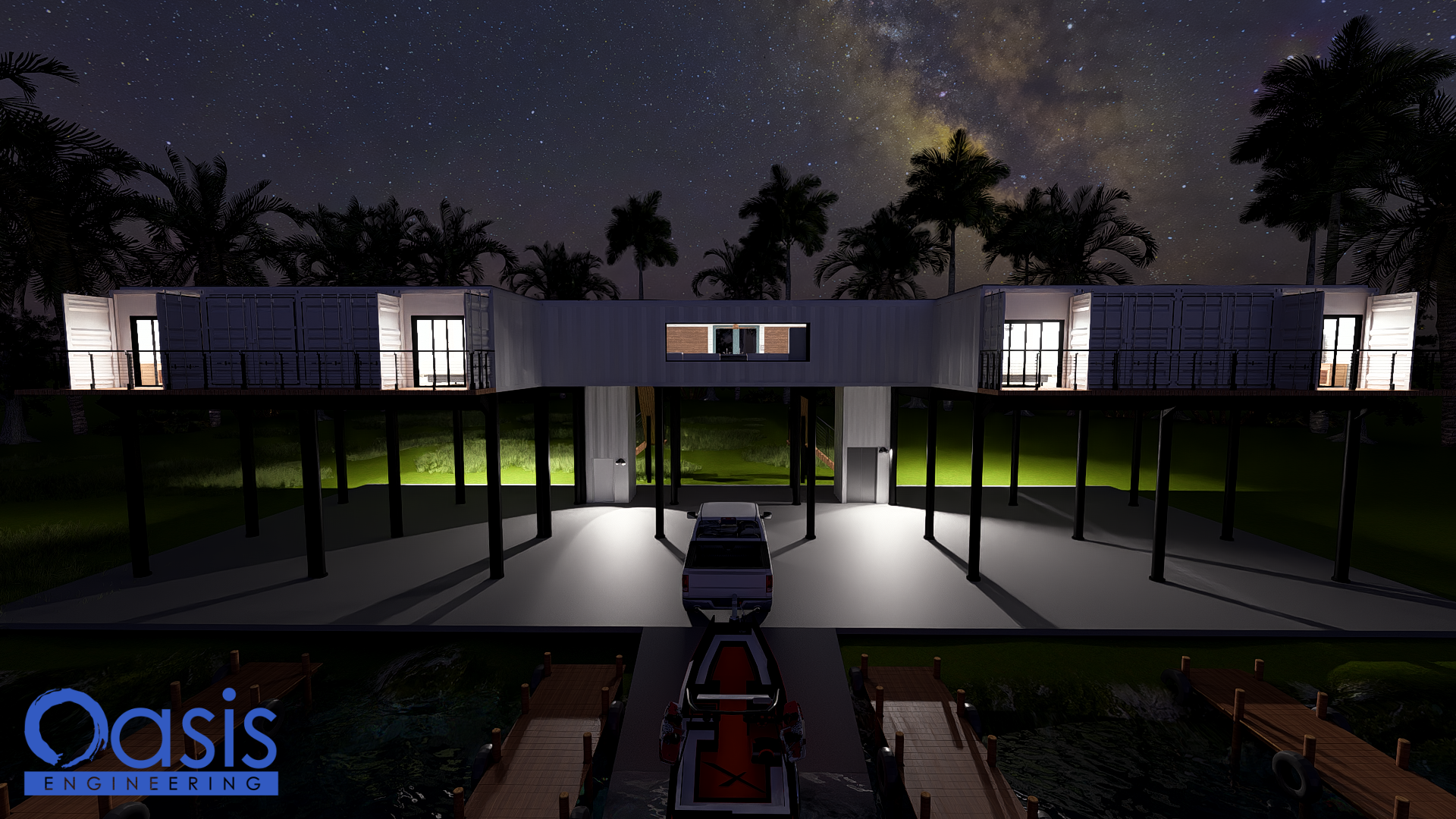

- Elevation: Home elevated on steel pilings 13 feet above ground level, exceeding DFE.
- Structural Reinforcement: Containers welded together and anchored to pilings with bolted connections designed for uplift resistance.
- Flood Openings: Flood openings provided in storage closet at the ground level (storage enclosure bellow BFE).
- Wind Resistance: Designed to withstand wind speeds of up to 155 mph.
- Materials: All exterior coatings are corrosion-resistant; interiors use moisture-resistant finishes.
Lessons Learned from Past Hurricanes
Historical hurricanes like Hurricane Helene (2024) and Hurricane Irma (2017) have highlighted the importance of resilient design:
- Elevation Saves Structures: Homes elevated above flood levels experienced significantly less damage.
- Structural Integrity Matters: Properly engineered connections and reinforcements can prevent catastrophic failures.
- Building Codes Work: Structures built to meet or exceed modern codes fared better during storms.
Conclusion
Designing container homes to withstand hurricanes and flooding is both feasible and practical when adhering to ASCE 24 standards and local building codes. By incorporating elevated foundations, robust structural designs, and resilient materials, homeowners can enjoy the benefits of container living without compromising safety.
At Oasis Engineering, our expertise lies in creating container homes that are not only sustainable and stylish but also engineered to stand strong against nature’s fiercest forces. We stay abreast of the latest codes and employ cutting-edge engineering practices to ensure your home is a safe haven, no matter the weather.
Interested in building a hurricane and flood-resistant container home? Contact us to discuss your project and learn how we can help you create a resilient living space tailored to your needs.
Stay safe, stay resilient.
