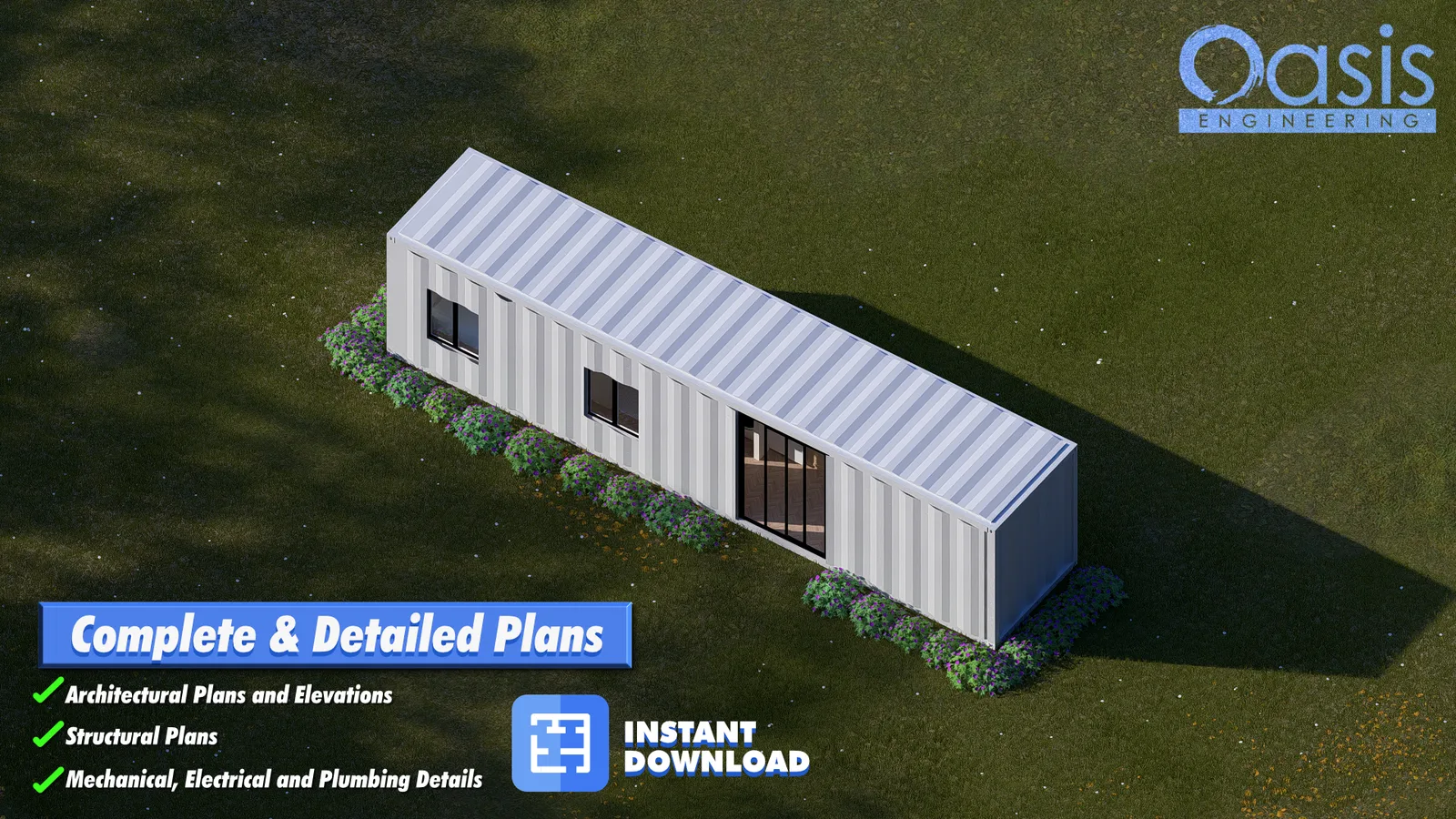

40ft High Cube Container Home Plans, 1 Bed 1 Bath – Model A144 1 / 19

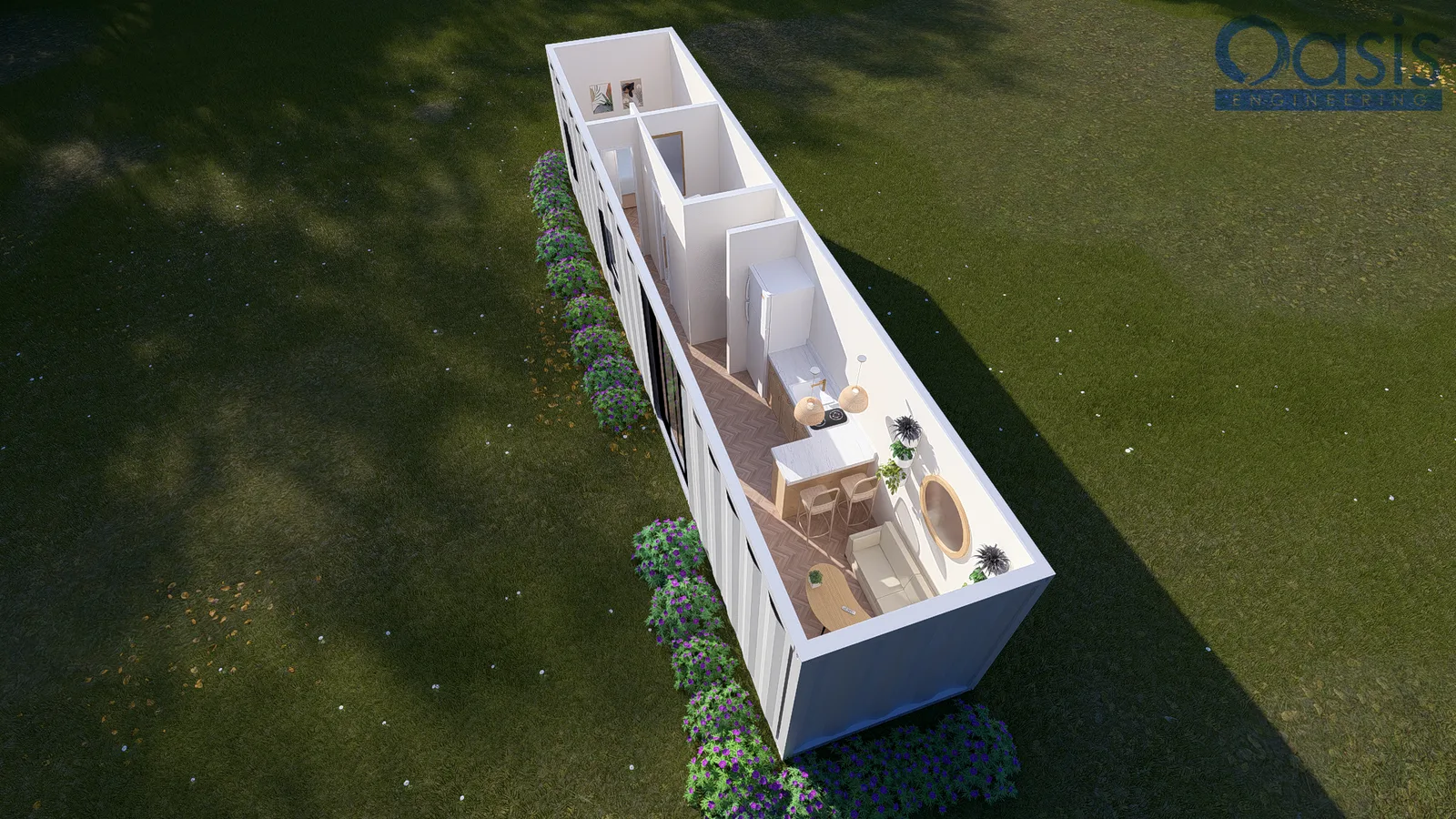

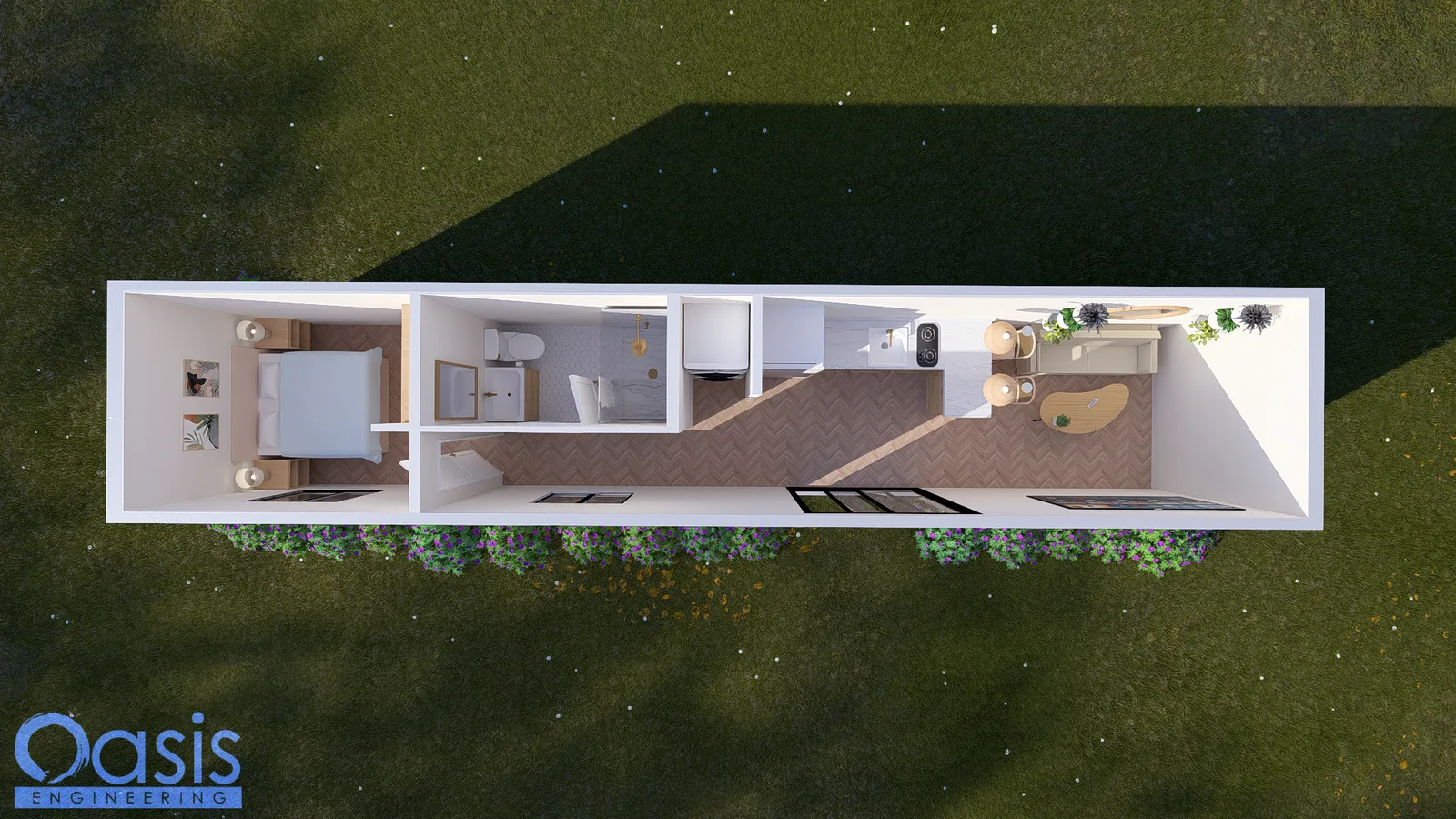

Model A144 is the one-bedroom 40ft high-cube plan with the bedroom at one end, a full bath and stacked laundry in the middle, and a galley kitchen opening into a 10-foot living room at the other end. It is the same family as the A14, with a few things done differently: a proper washer/dryer closet, a 9'-6" bedroom with its own emergency-escape window, and the entry through a sliding glass door on the long side instead of the end wall.

Key Features

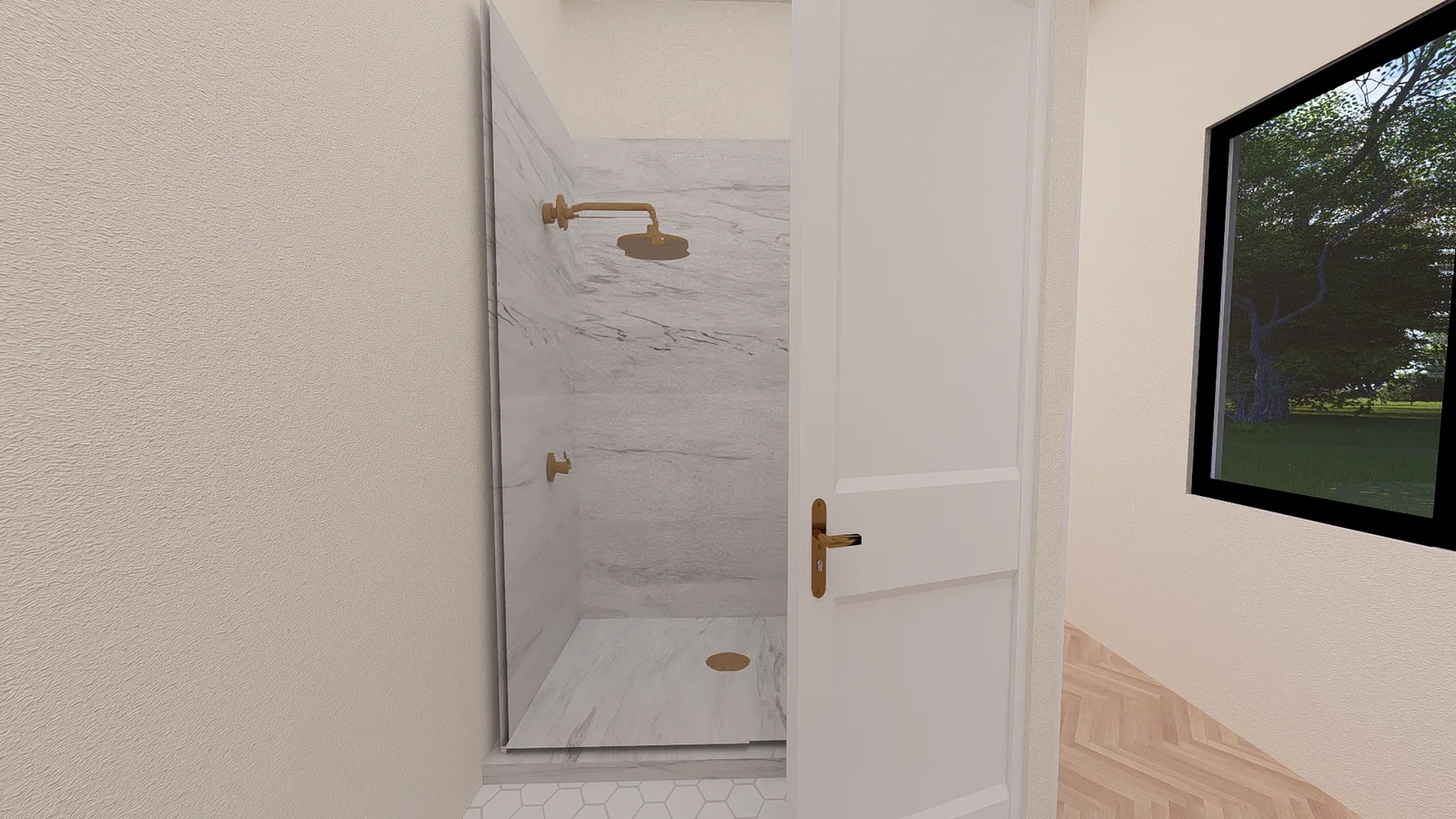

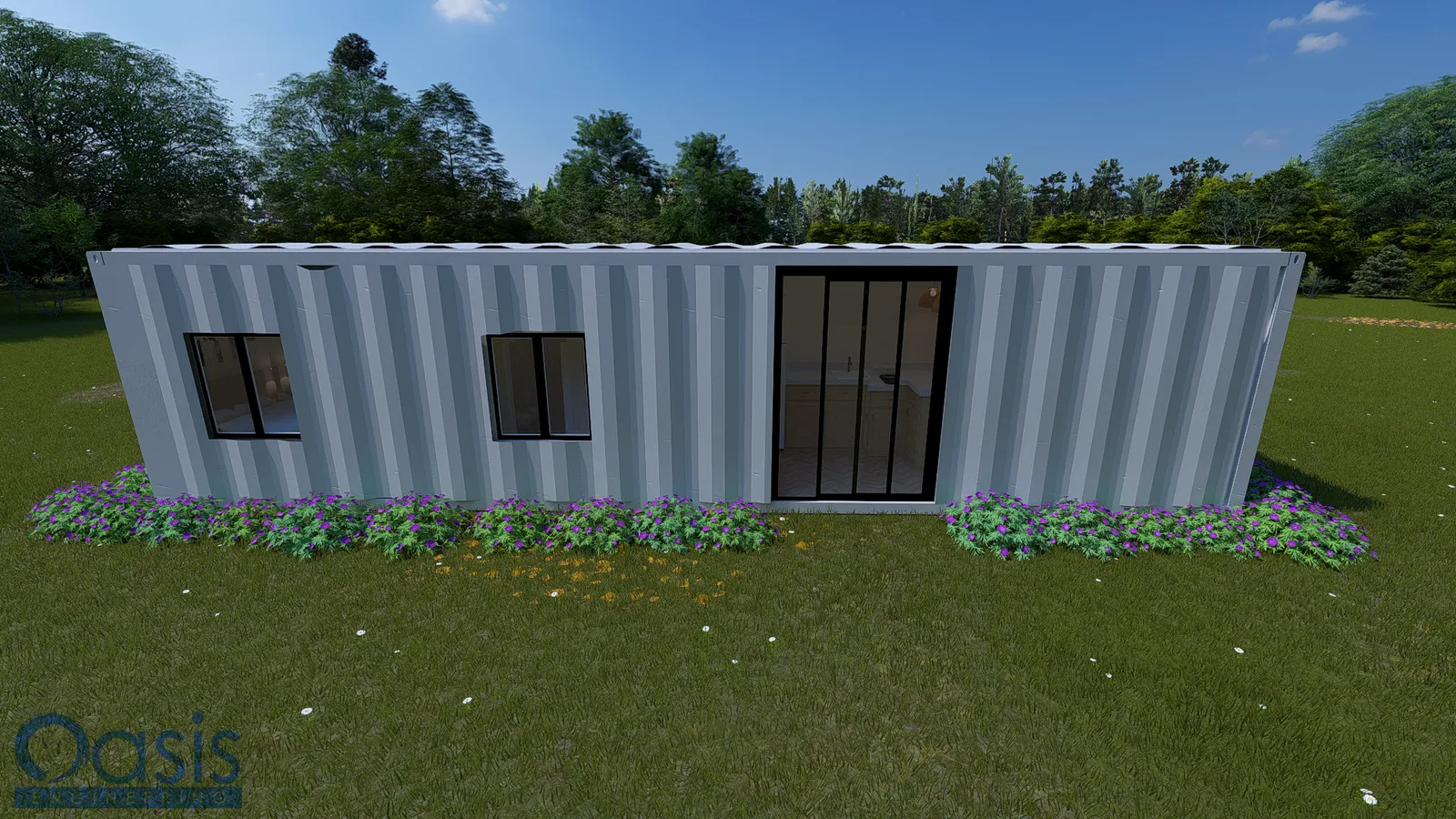

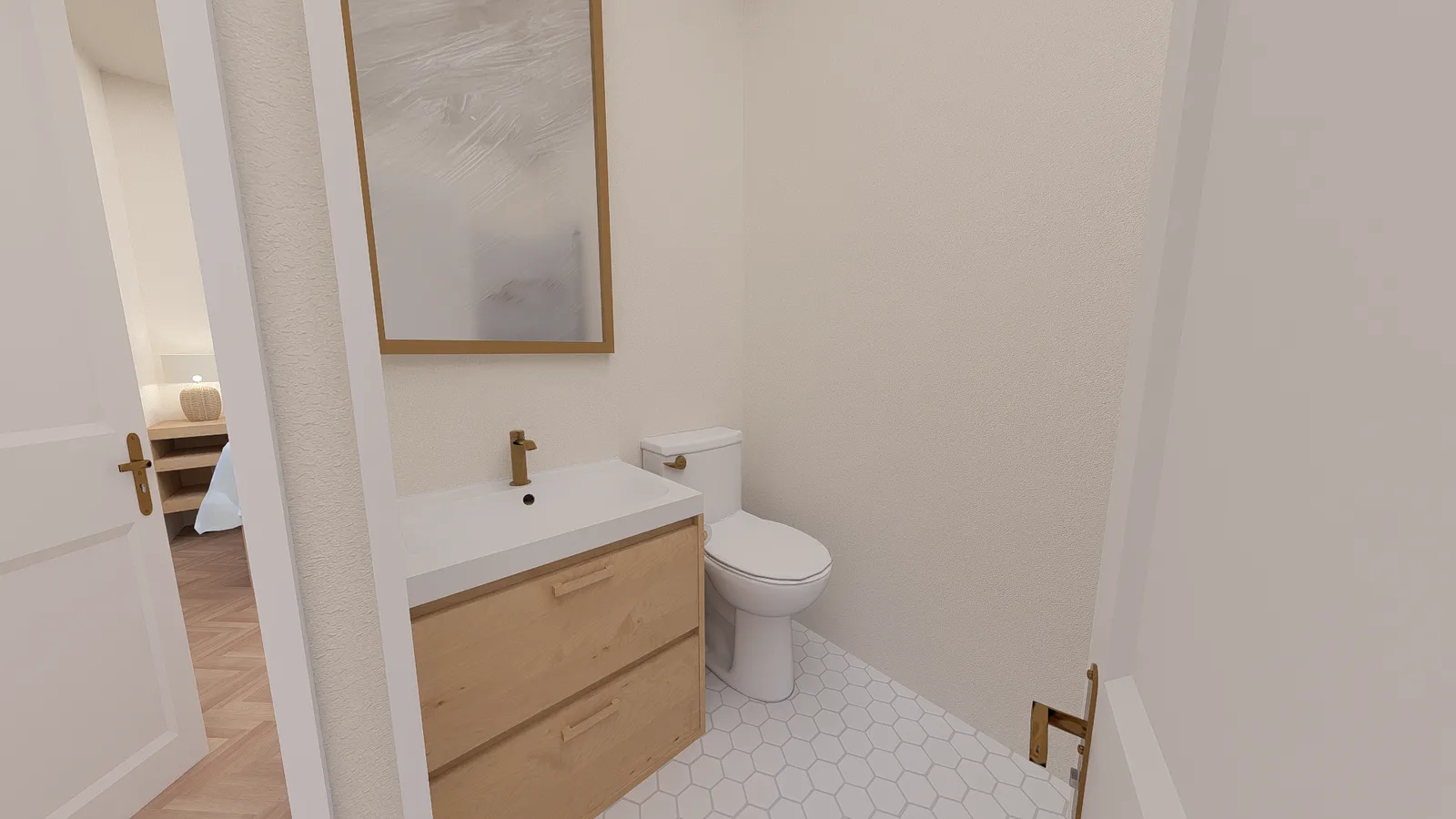

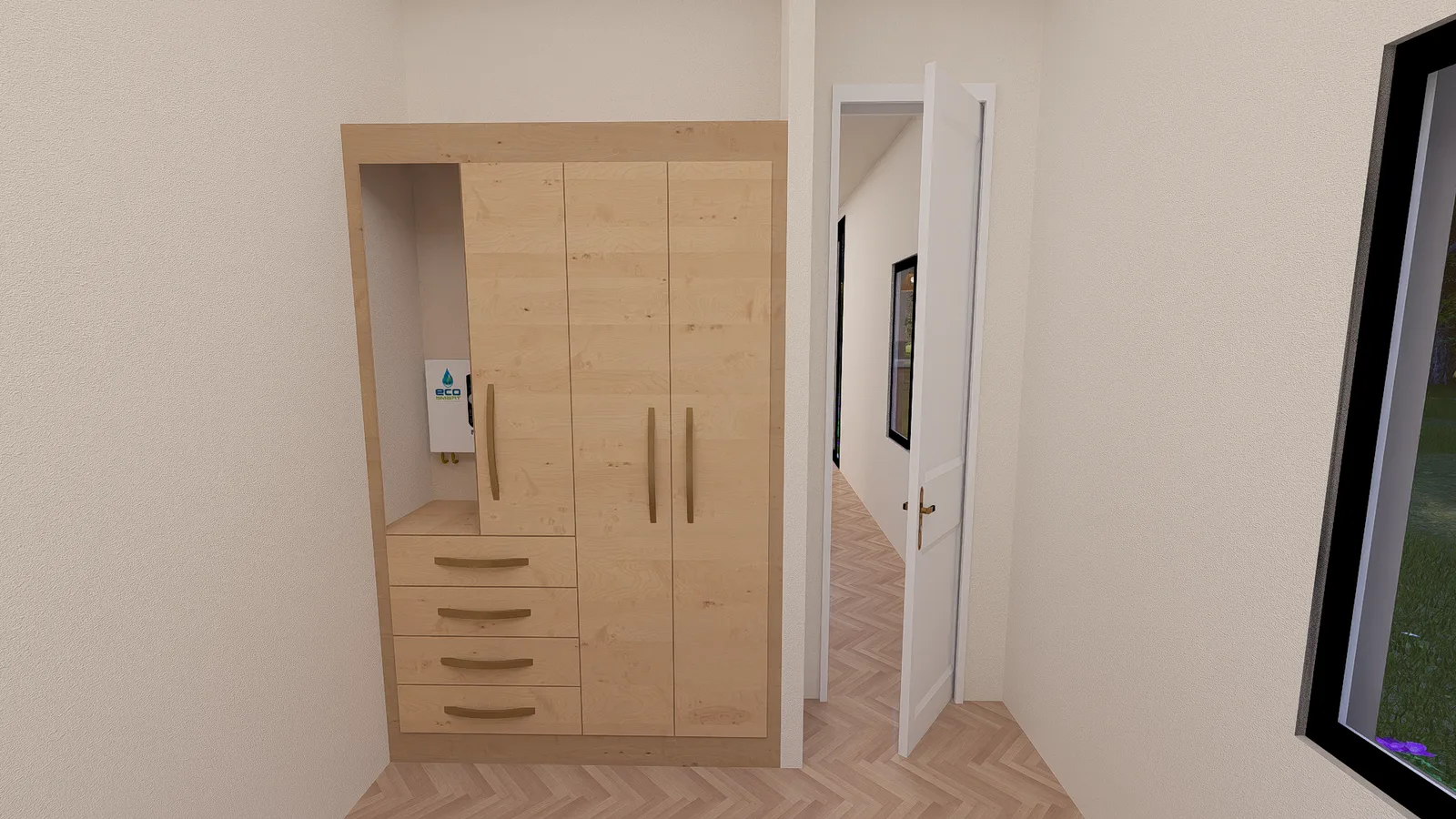

40ft High-Cube Container: One container, about 320 sq ft, 9'-6" tall for the extra headroom. Bedroom (9'-6" long): Full-size bed, shelves with electrical under, closet with the tankless water heater tucked in, and an emergency escape window. Full Bath (8'-0" long): Sink and toilet, 4'-1" shower, behind its own door. Laundry: Stacked washer/dryer closet between the bath and the kitchen. Galley Kitchen (5'-9"): Mini fridge, sink, built-in burner, and a 4-foot bar with stools under. Living Room (10'-2"): Sectional and TV stand at the end of the container. Openings: Sliding glass entry door on the long side, two plate-glass windows at the bedroom and bath, glass at the living end.

A note on the doors. the renderings show sliding glass doors. Some municipalities require a swing door for egress, and some limit the size of openings in a container wall without added framing. Check with your local building department before you order doors; swapping a slider for a swing door is a small change we can make in the site-specific engineering.

Layout & Specs

  • Container: One 40ft high cube (approx. 320 sq ft)
  • Bedrooms: 1 · Bathrooms: 1 · Laundry: stacked W/D
  • Kitchen: Galley with 4 ft bar

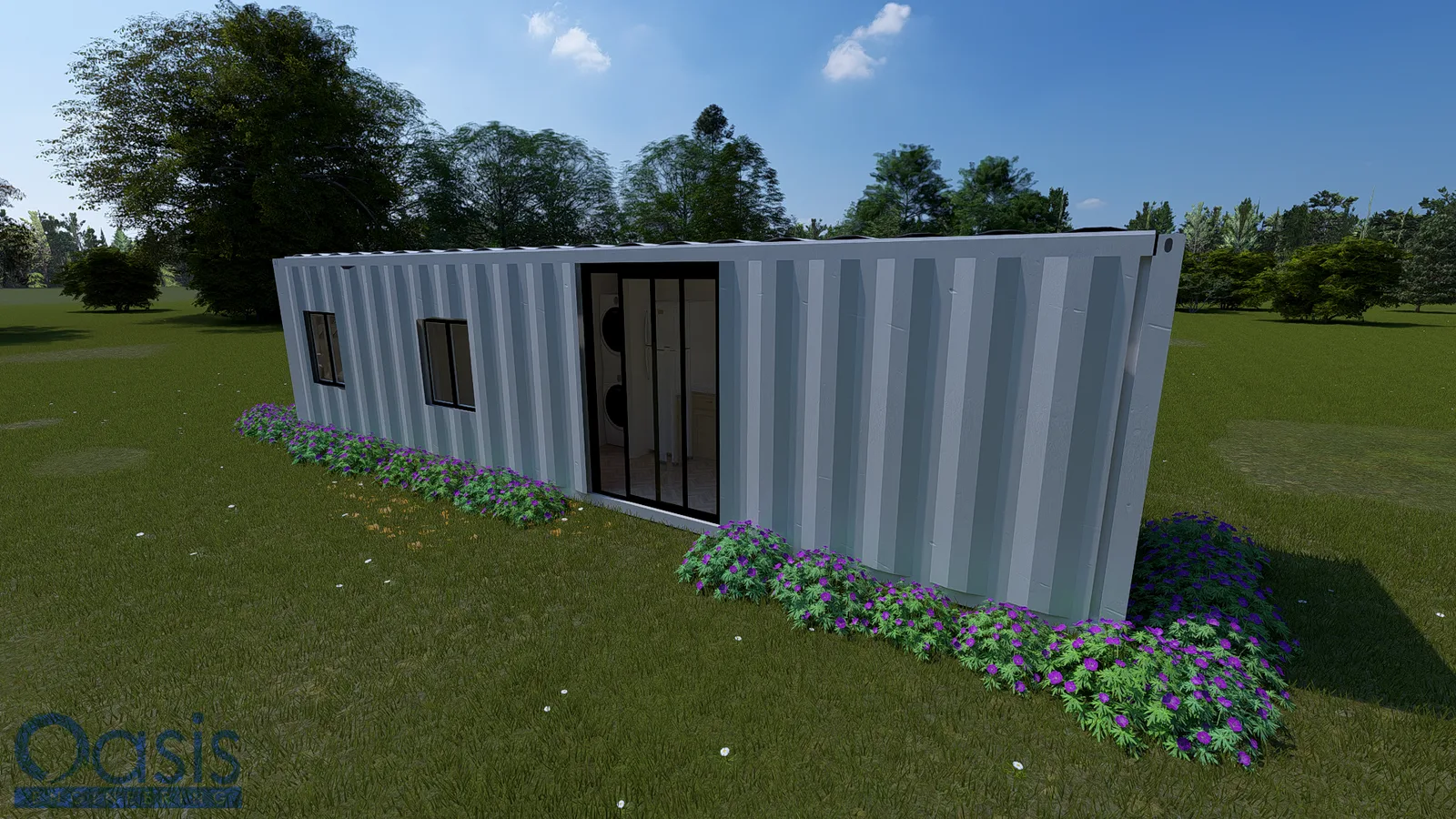

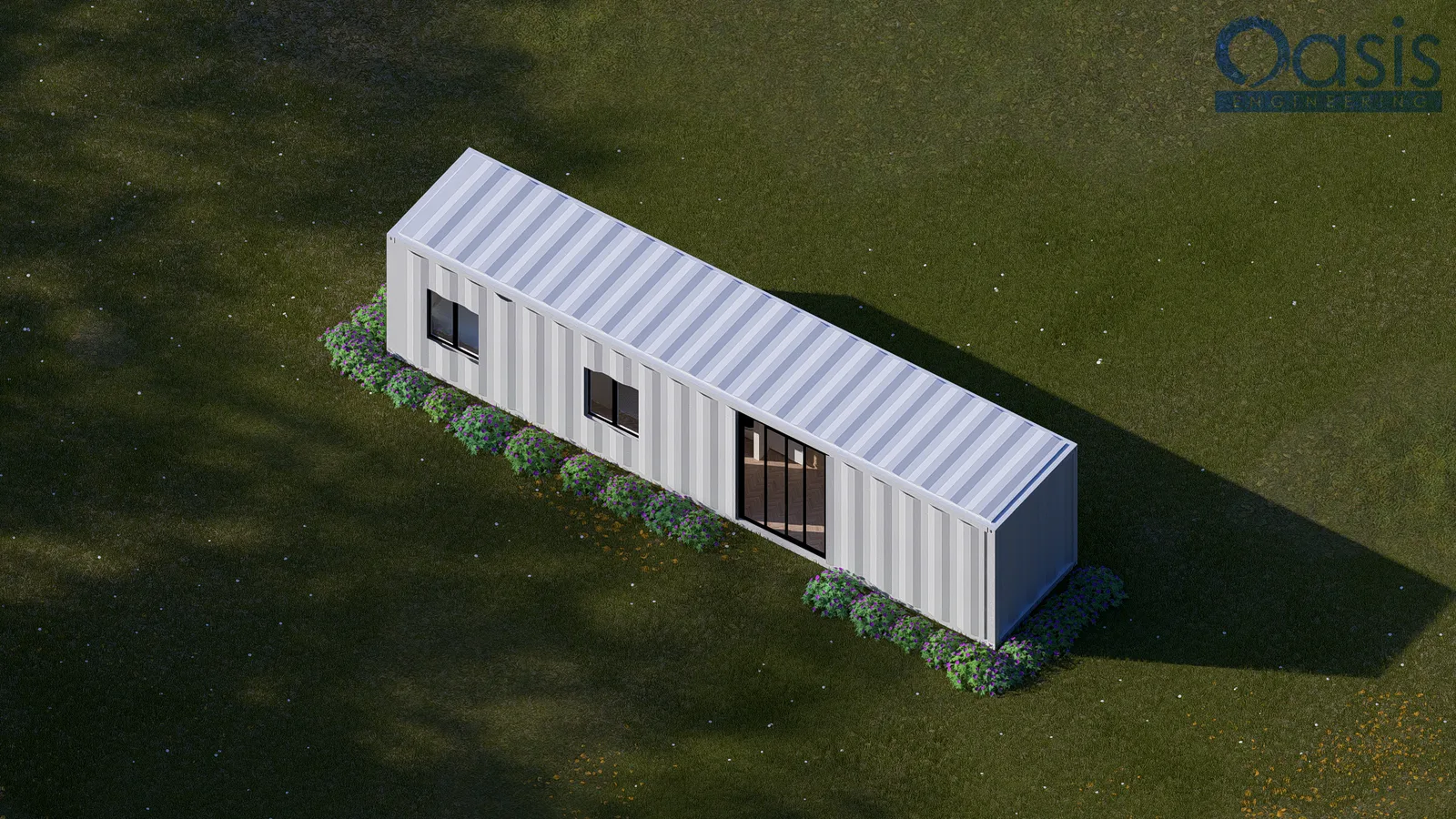

  • Openings: Sliding glass entry door on the long side; emergency escape window at the bedroom
  • Style: Modern minimalist container home

Plan Set Includes

  • 19 sheets, PDF, printable
  • Cover sheet with design criteria and code references
  • Floor plan, elevations, typical section, general notes
  • Electrical notes and plan, mechanical notes and plan
  • Plumbing specs, details and notes (four sheets)
  • Foundation and framing plan, foundation notes, structural details (three sheets)

Perfect For

  • Backyard ADU or guest house
  • Short-term rental
  • Lake, farm or off-grid retreat
  • Minimalist full-time living for one or two
  • A first container build

Pre-designed and pre-engineered as a concept set; site-specific engineering, local code adoption and a PE seal are available from Oasis Engineering for your jurisdiction.

Index of Sheets

  • Cover Sheet C.0
  • Floor Plan A.1
  • Elevations A.2
  • Typical Section A.3
  • General Notes A.4
  • Electrical Notes E.1
  • Electrical Plan E.2
  • Mechanical Notes M.1
  • Mechanical Plan M.2
  • Plumbing Specs P.1
  • Plumbing Details & Notes P.2
  • Plumbing Details & Notes P.3
  • Plumbing Details P.4
  • Foundation & Framing Plan S.1
  • Structural Details S.2
  • Structural Details S.3
  • Foundation General Notes S.4
  • Structural Details S.5
